JBL AC115S 15 High Power Subwoofer System
- High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish

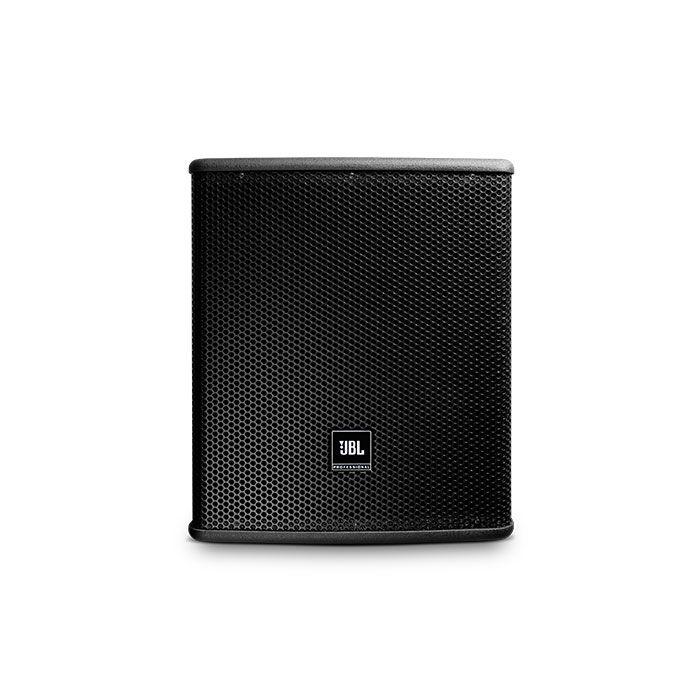

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
SPECIFICATIONS
Frequency Range (-10 dB) 32 Hz - 250 Hz
Frequency Response (±3 dB) 40 Hz - 250 Hz
System Sensitivity (1w @ 1m) 94 dB
Nominal Impedance 8 ohms
Maximum SPL(1m) 120 dB (126 dB peak)
Power Rating (Continuous/Program/Peak) 400 W/800 W/1600 W
Low frequency driver 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material 18 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 12 x M10 threaded suspension points
Dimensions (H x W x D) 483 mm x 419 mm x 600 mm (19 in x 16.5 in x 23.6 in)
Net Weight 24 kg (52.9 lbs)
| Condition | New |
|---|---|
| Country of Manufacture | China |
