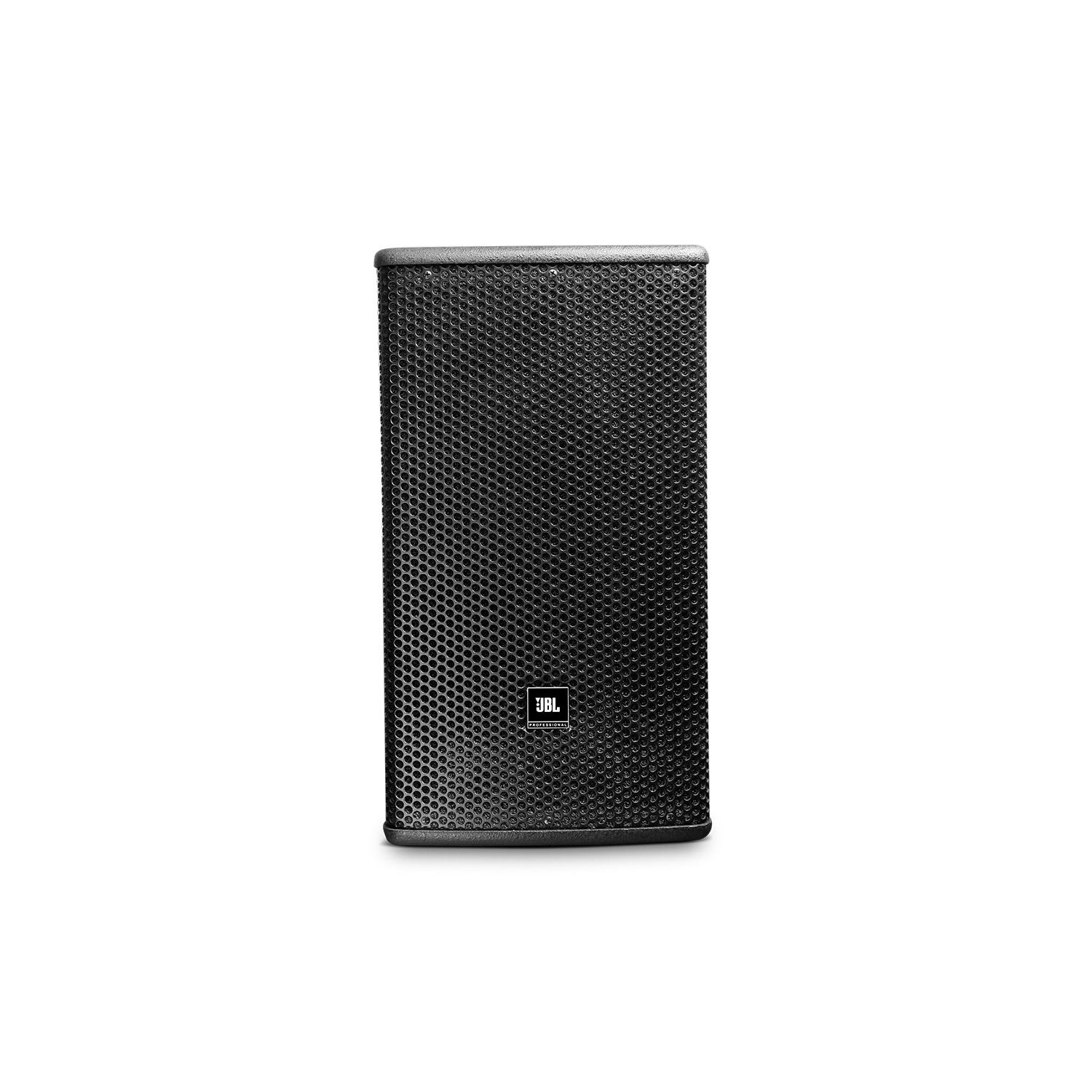

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Specifications
Frequency Range (-10 dB) 70 Hz - 20 kHz
Frequency Response (±3 dB) 90 Hz - 18 kHz
System Sensitivity (1w @ 1m) 94 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 116 dB (122 dB peak)
Power Rating
(Continuous/Program/Peak) 150 W/ 300 W/ 600 W
Coverage Pattern 90° x 50° (H x V)
Crossover 2 kHz
Low Frequency Driver 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
High Frequency Driver 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 470 mm x 265 mm x 254 mm
18.5 in x 10.4 in x 10.0 in
Net Weight 10.2 kg (22.4 lbs)
More Information
Condition
New
Country of Manufacture
China
