JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF

Name: JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF
Brand: JBL
SKU: AM5215/66
Price: 2472.30 USD
Availability: InStock

Be the first to review this product

$2,472.30

In stock

SKU

AM5215/66

60° x 60° Coverage 265H-1 Differential Drive® Low-Frequency Driver 2408H-1 High-Frequency Compression Driver Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion Rotatable waveguide for vertical or horizontal orientation Bi-Amp/Passive Switchable Available in Black, White and WRC/WRX weather resistant finishes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

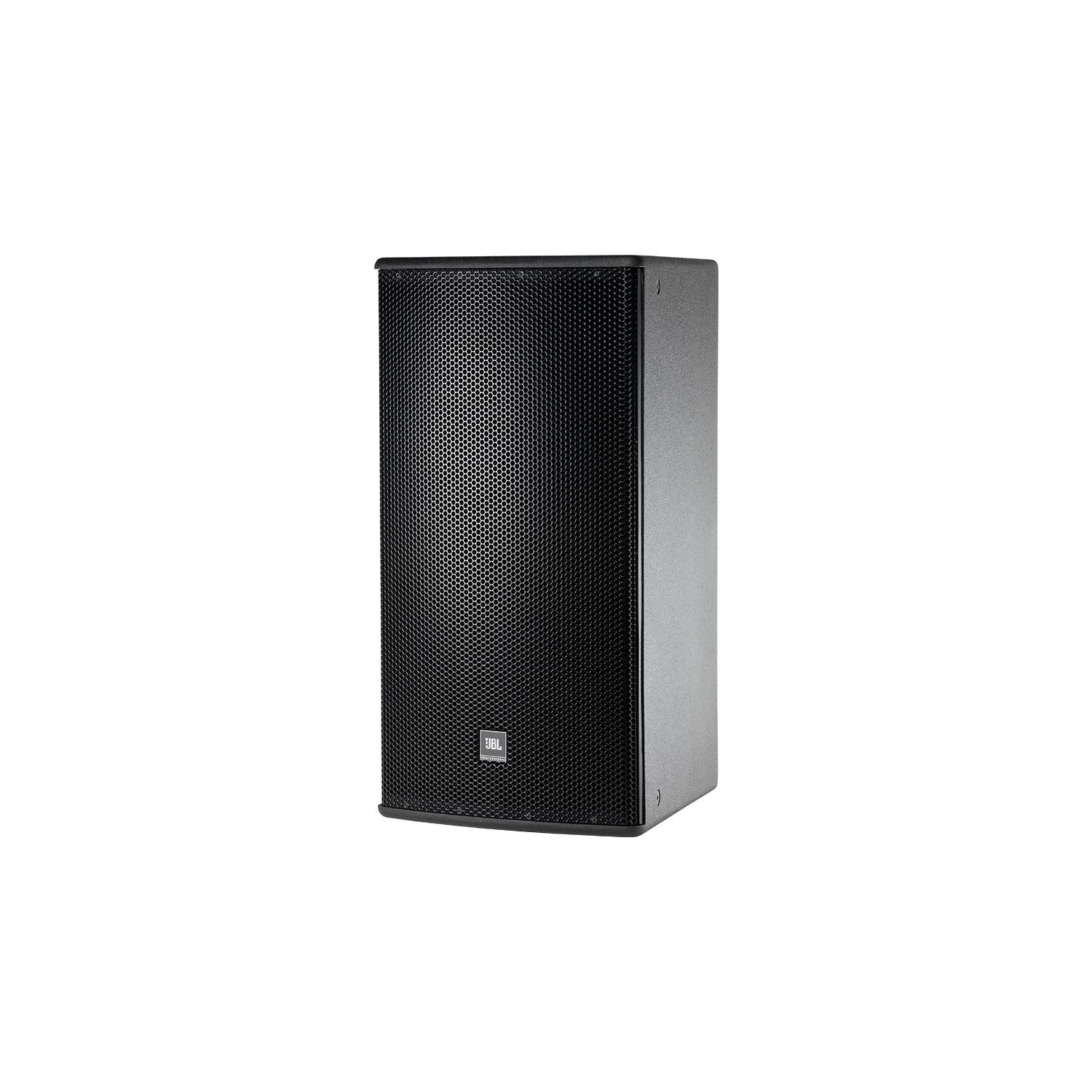

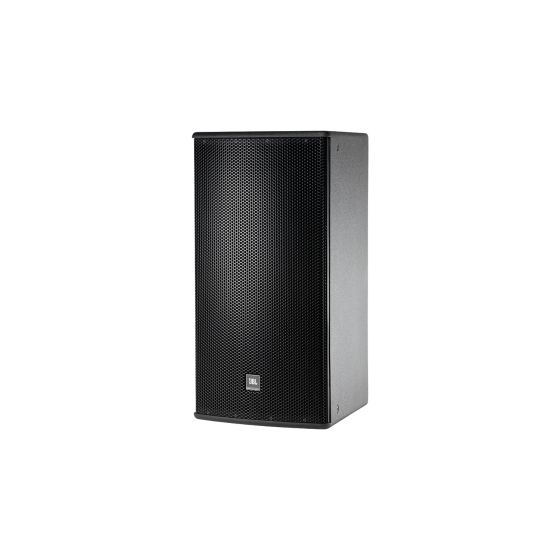

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF sku number AM5215/66

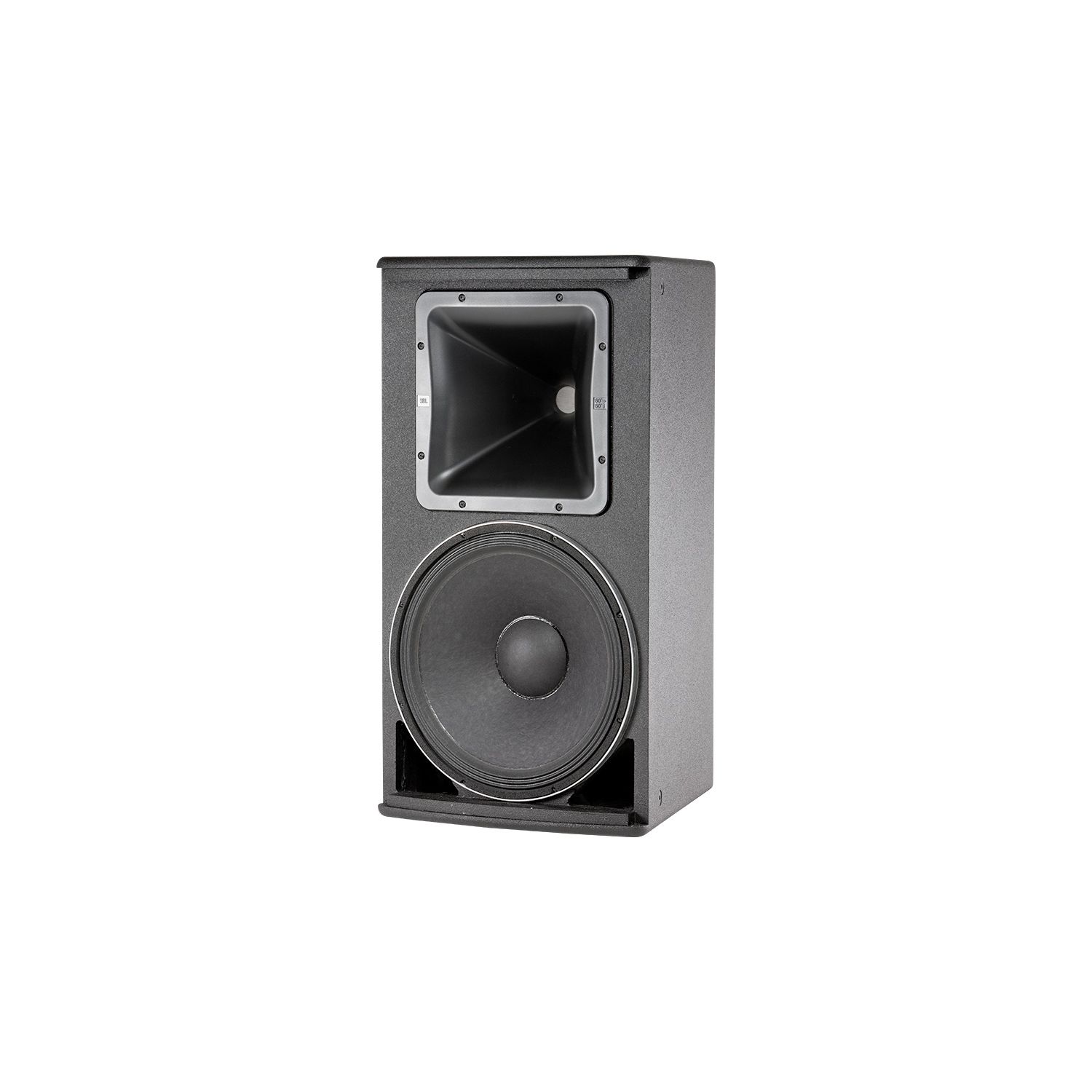

The AM5215/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high-frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Specifications

Frequency Range (-10 dB) 35 Hz - 20 kHz

Frequency Response (±3 dB) 41 Hz – 20 kHz

Coverage Pattern /64: 60° x 60°, rotatable waveguide

Directivity Factor (Q) 14.5

Directivity Index (DI): 11.6 dB

Crossover Modes Bi-amp/Passive switchable

Passive Crossover Frequency 2 kHz

Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs

Long-Term System Power Rating (IEC) Passive mode: 350 W (1400 W peak), 100 hrs

Maximum SPL Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.

System Sensitivity (1W @ 1m) Passive mode: 98 dB SPL

Low Frequency Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil

Nominal Impedance 8 ohms

Sensitivity (1W @ 1m, within operational band) 99 dB SPL

High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil

Nominal Impedance 8 ohms

Sensitivity (1W @ 1m) 114 dB SPL

Waveguide PT-H66HF-1

Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish Black DuraFlex™ finish. White available upon request.

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max

width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)

Net Weight 25.0 kg (55 lb)

Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1

More Information
Condition	New
Country of Manufacture	Mexico
