JBL AM7215/26 High Power 2-Way Loudspeaker with 1 x 15 LF & Rotatable

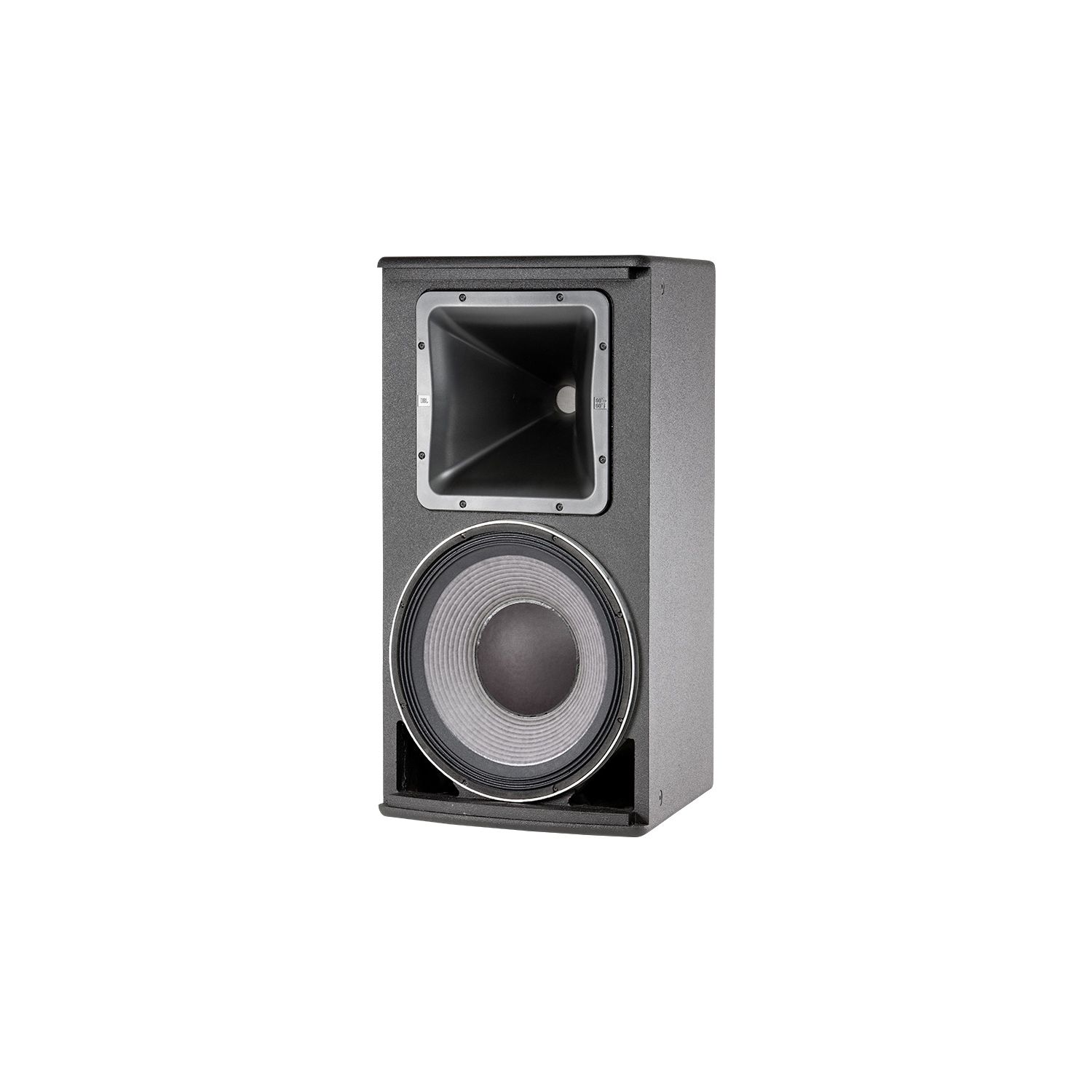

The AM7215/26 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Specifications

System:

• Frequency Range (-10 dB): 34 Hz – 20 kHz

• Frequency Response (±3 dB): 40 Hz – 18 kHz

• Coverage Pattern: 120° x 60°, rotatable waveguide

• Directivity Factor (Q): 8.6

• Directivity Index (DI): 9.3 dB

• Crossover Modes: Bi-amp/Passive switchable

• Passive Crossover Frequency: 1.4 kHz

• Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hrs 750 W (3000 W peak), 100 hr

HF: 100 W (400 W peak), 2 hrs

• Long-Term System Power Rating (IEC): Passive mode: 600 W (2400 W peak), 100 hrs

• Maximum SPL: Bi-amp mode

LF: 128 dB-SPL cont avg (134 dB peak)HF: 133 dB-SPL cont avg (139 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)

• System Sensitivity (1W @ 1m): Passive mode: 96 dB SPL Transducers:

• Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil

• Nominal Impedance: 8 ohms

• Sensitivity (1W @ 1m, 98 dB SP within operational band):

• High Frequency Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

• Nominal Impedance: 8 ohms

• Sensitivity (1W @ 1m): 113 dB SPL

• Waveguide: PT-H126HF-1 Physical:

• Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

• Finish: Black DuraFlex™ finish. White available upon request.

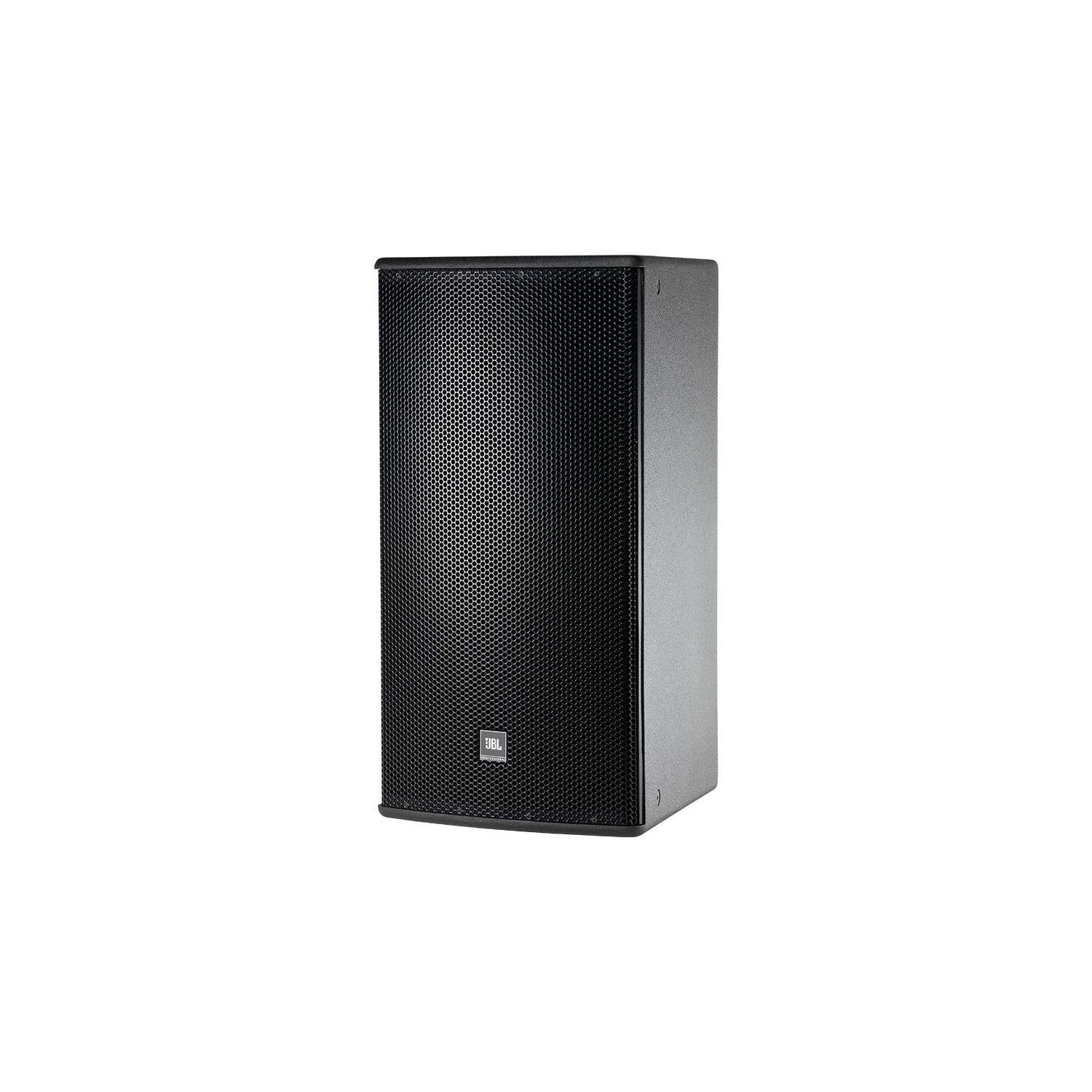

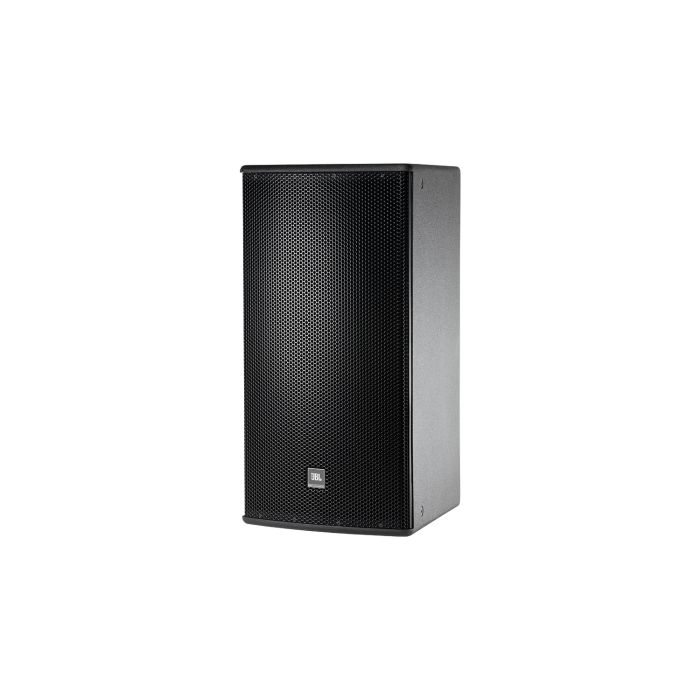

• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

• Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals.

• Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

• Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.

• Dimensions (H x W x D in 780 x 420 x 503 mm vertical cabinet orientation): (30.8 x 16.5 x 19.8 in)

• Net Weight: 27.2 kg (60 lb)

• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
