2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

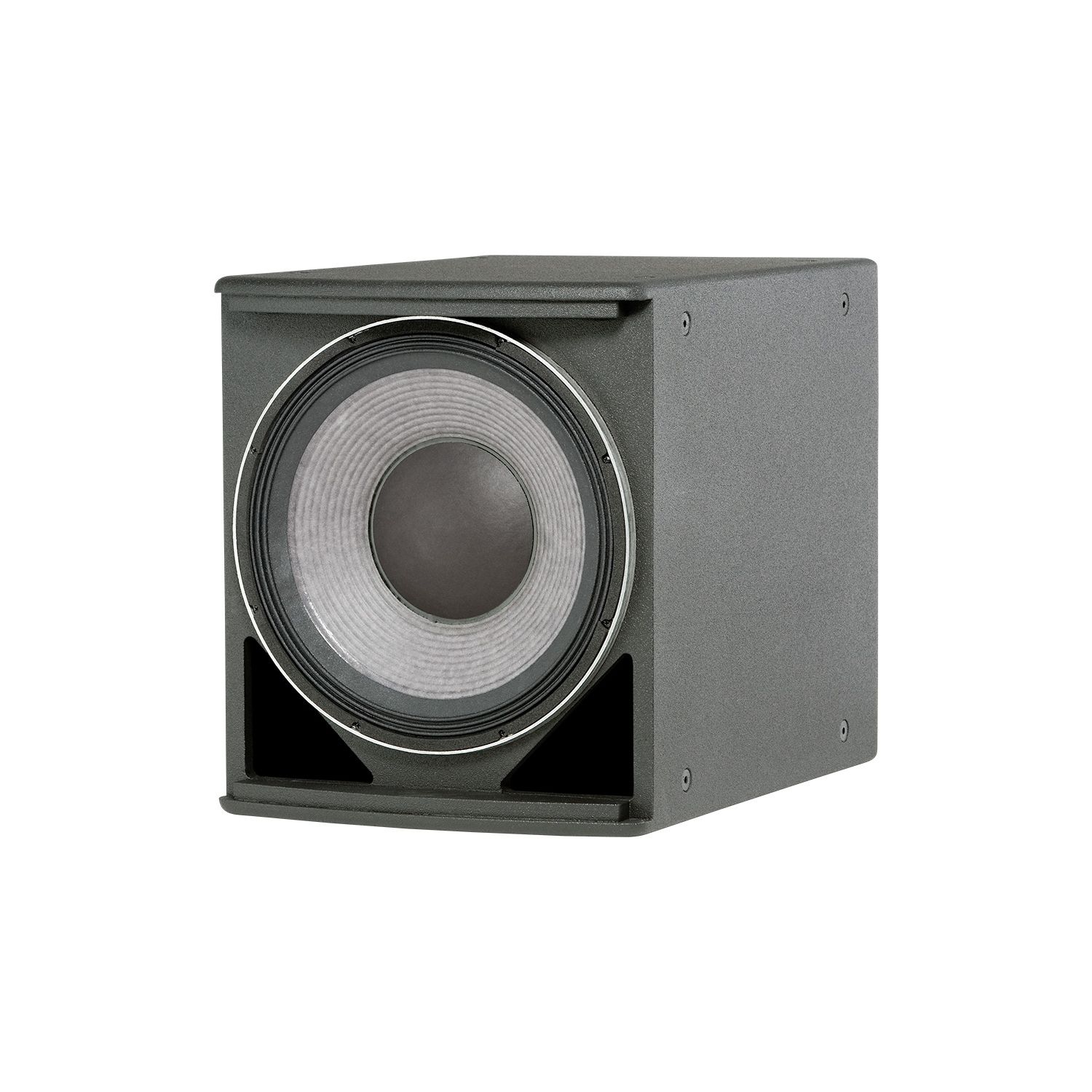

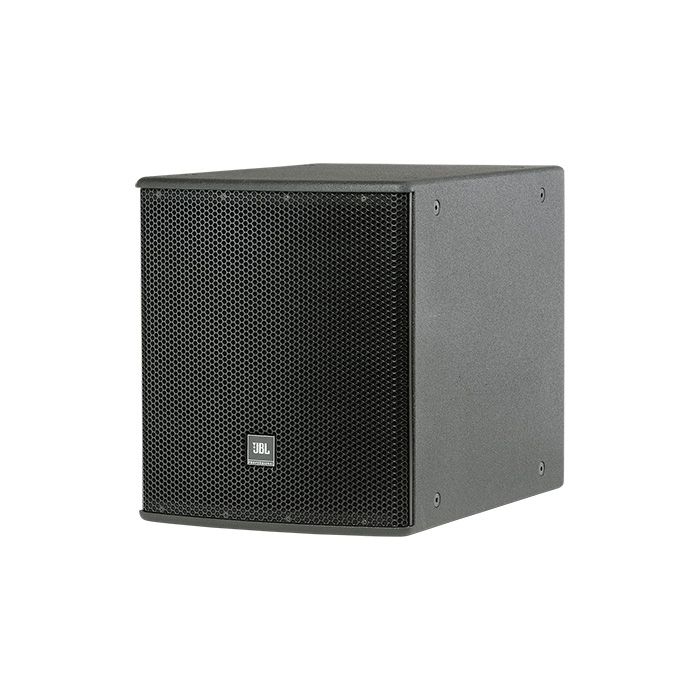

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Specifcations
Frequency Range (-10 dB) 32 Hz - 1 kHz
Frequency Response (± 3 dB) 42 Hz - 1 kHz
Transducer Power Rating 800 W (3200 W peak), 2 hrs.
Long-Term System Power Rating 675 W (2700 W peak), 100 hrs.
Maximum SPL (1m) 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max
width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation) 483 x 419 x 597 mm (19.0 x 16.5 x 23.5 in)
Net Weight 20.6 kg (45.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
More Information
Condition
New
Country of Manufacture
Mexico
