JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12 LF

Name: JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12 LF
Brand: JBL
SKU: AWC129
Price: 942.00 USD
Availability: InStock

Be the first to review this product

$942.00

In stock

SKU

AWC129

Highly weather-resistant IP56 rating Consistent 90° x 90° broadband pattern control Components: • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 55 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) direct 8Ω low-impedance.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

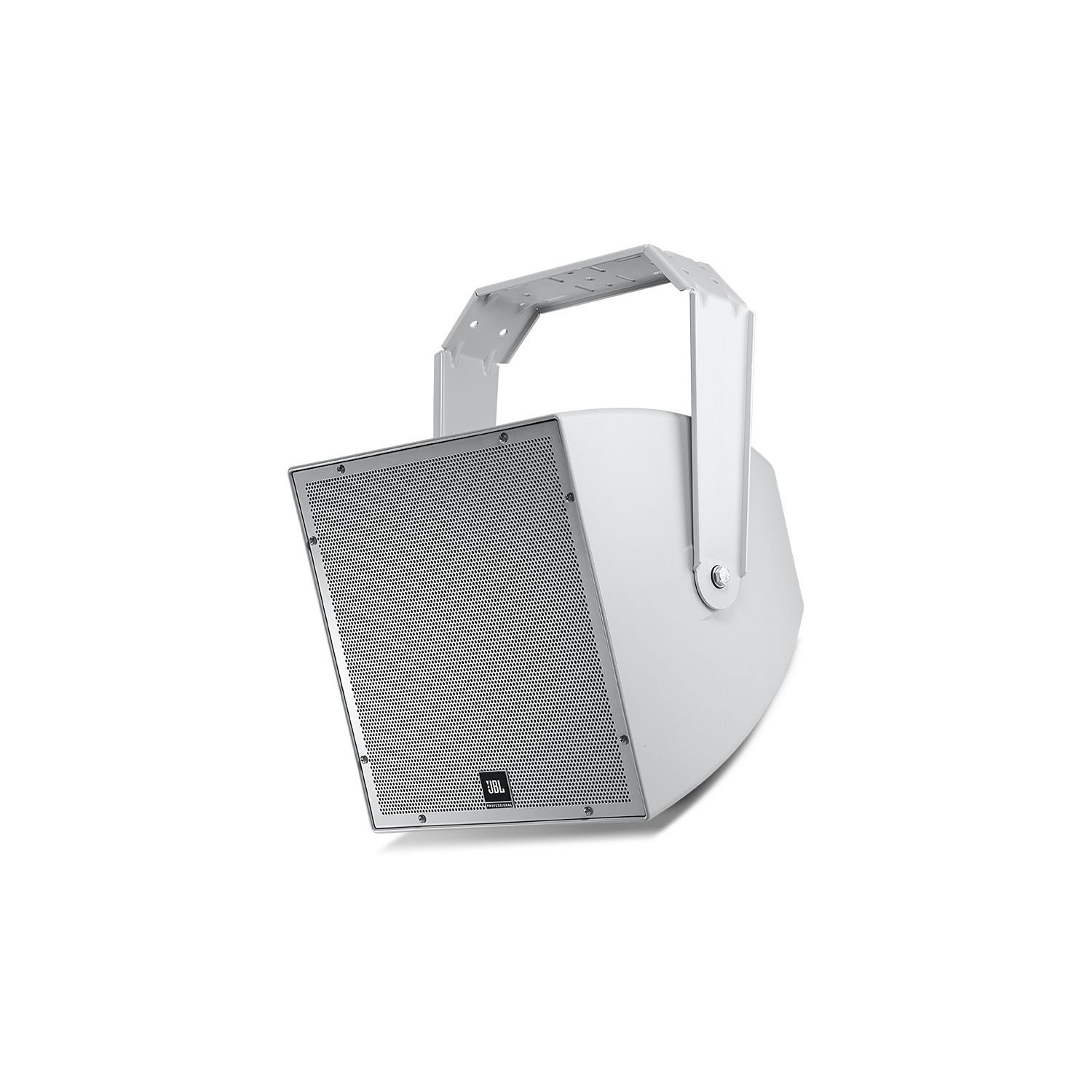

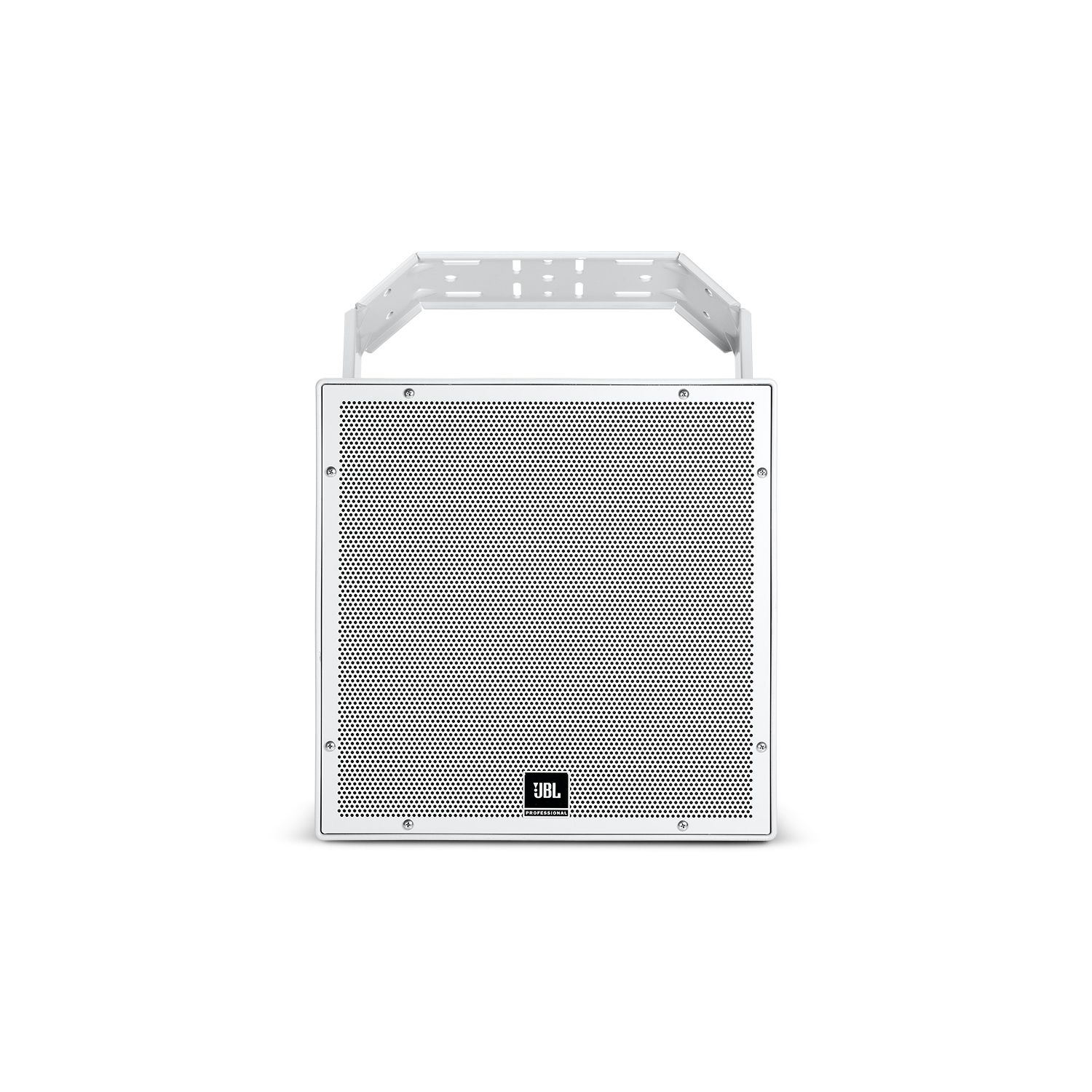

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12 LF sku number AWC129

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

SPECIFICATIONS

Frequency Range (-10 dB) 55 Hz – 20 kHz

Frequency Response (±3 dB) 80 Hz – 20 kHz

Coverage Pattern 90° x 90°

Directivity Factor (Q) 10.1 (1 k – 16 kHz)

Directivity Index (DI) 9.5 dB (1k – 16 kHz)

Long-Term System Power Rating (IEC) 400 W (1600 W peak), 2 hrs.

250 W (1000 W peak), 100 hrs

Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz – 20 kHz)

Maximum SPL Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB

Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance 8 ohms

Transformer Taps 70V: 200W, 100W, 50W, 25W

100V: 200W, 100W, 50W

Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.

High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.

HF Driver Protection Minimum audibility SonicGuard™ HF overload protection

Enclosure ABS with Glass enclosure, heavily braced

Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.

Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

Dimensions 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back

Colors Available in gray (similar to Pantone 420C) and black (-BK)

Net Weight 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

Shipping Weight 23.4 kg (51.5 lbs)

Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.

More Information
Condition	New
Country of Manufacture	China
