JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8in LF

Name: JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8in LF
Brand: JBL
SKU: AWC82
Price: 503.00 USD
Availability: InStock

Be the first to review this product

$503.00

In stock

SKU

AWC82

Highly weather-resistant IP56 rating Consistent 120° x 120° broadband pattern control Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 80 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

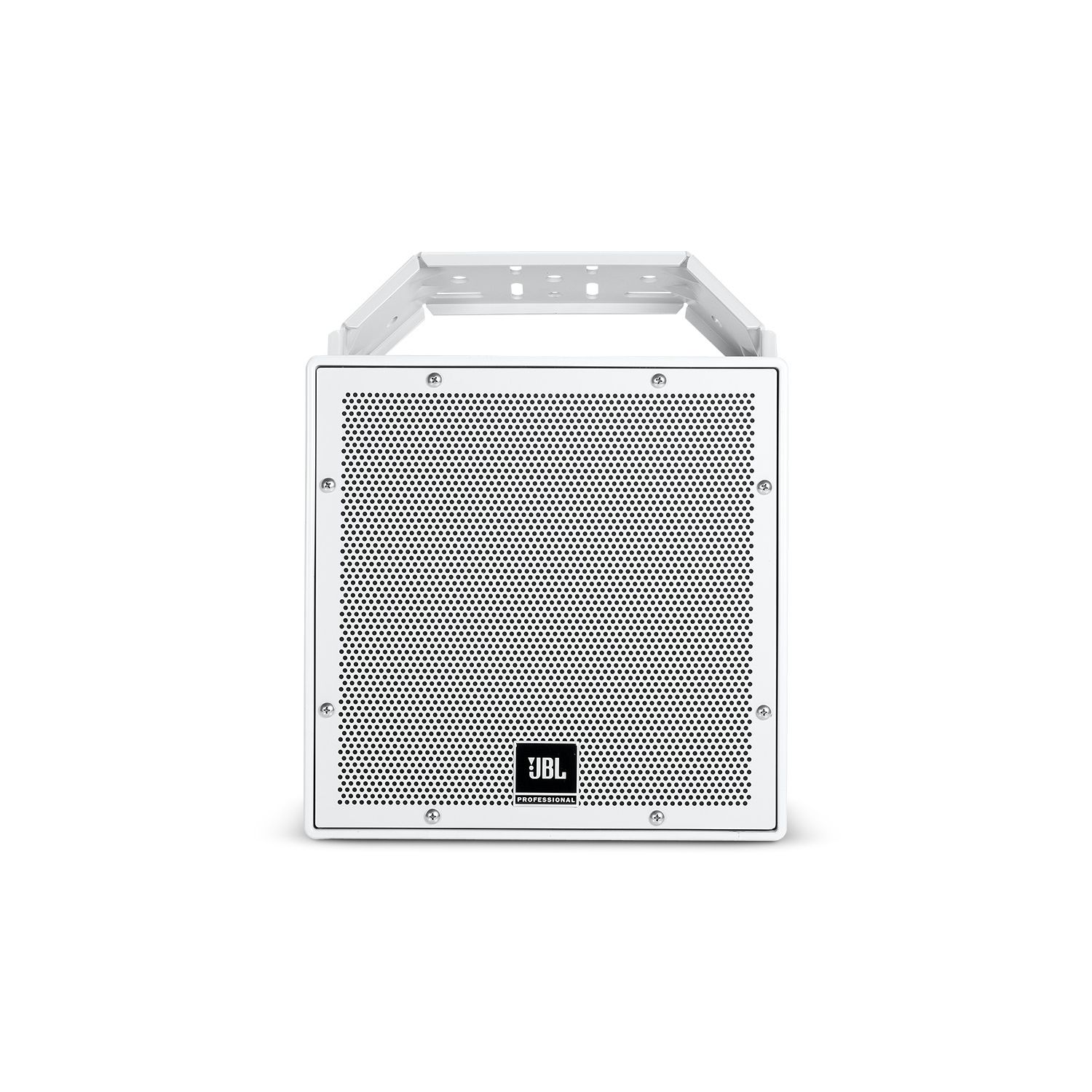

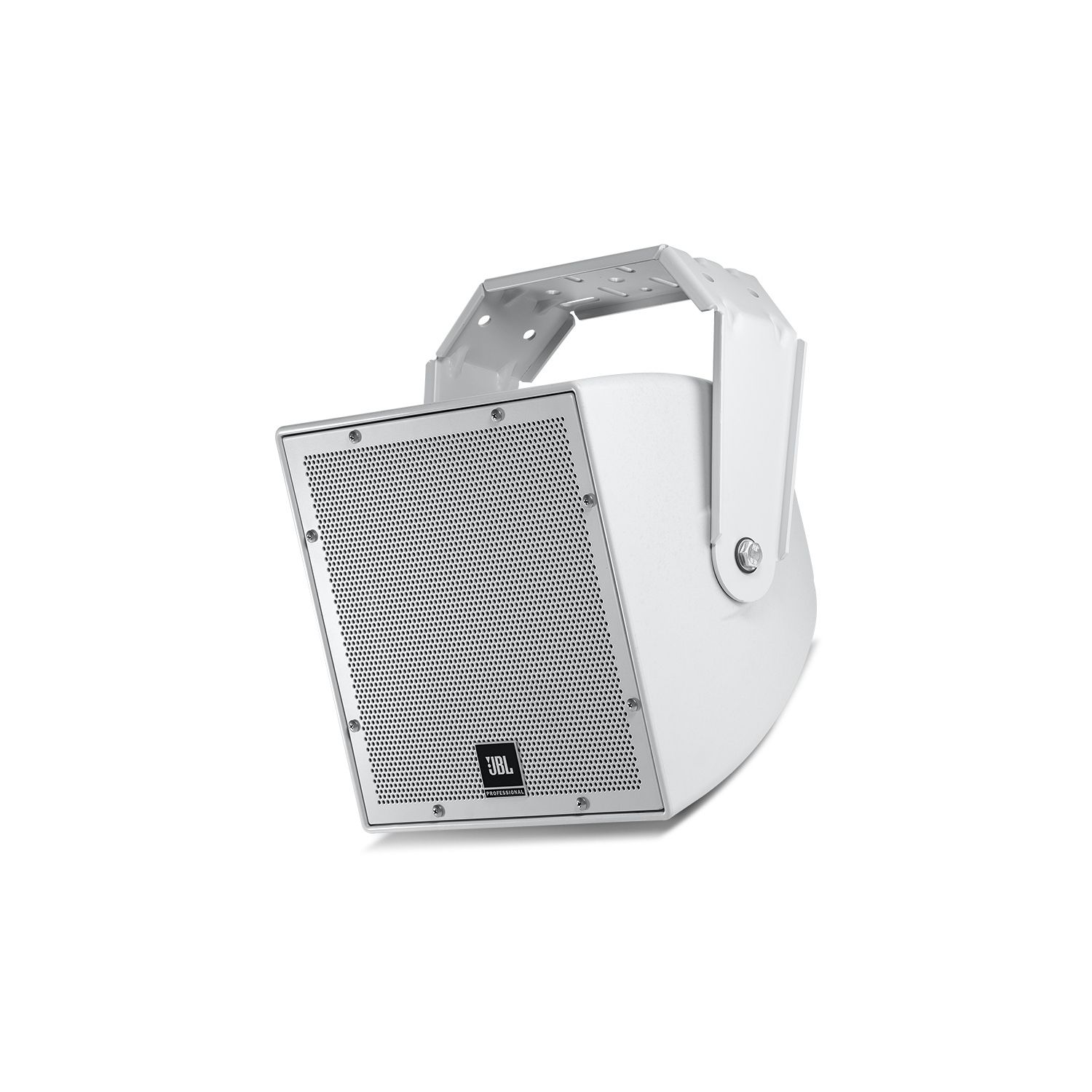

JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8in LF sku number AWC82

SPECIFICATIONS

Frequency Range (-10 dB) 80 Hz – 20 kHz

Frequency Response (±3 dB) 100 Hz – 20 kHz

Coverage Pattern 120° x 120°

Directivity Factor (Q) 8.1 (1 k – 16 kHz)

Directivity Index (DI) 8.4 dB (1 k – 16 kHz)

Long-Term System Power Rating (IEC) 250 W 2 hrs. / 200 W 100 hrs

Sensitivity (2.83V @ 1m) 94 dB (Ave. 100 Hz – 20 kHz)

Maximum SPL Direct 8Ω: 118 dB (peaks of 124 dB) / 200 W Tap: 117 dB

Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

Nominal Impedance 8 ohms

Transformer Taps 70V: 200W, 100W, 50W, 25W / 100V: 200W, 100W, 50W

Low Frequency Driver Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.

High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.

HF Driver Protection Minimum audibility SonicGuard™ HF overload protection

Enclosure ABS with Glass enclosure, heavily braced

Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

Dimensions 300 x 300 x 305 mm (11.8 x 11.8 x 12.0), cabinet / 331 mm (13.0 in) including gland nut / 359 mm (14.2 in) including bracket extending to back

Colors Available in gray (similar to Pantone 420C) and black (-BK)

Net Weight 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket

Shipping Weight 14.1 kg (31.0 lb)

Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.

More Information
Condition	New
Country of Manufacture	China
